Cessna Citation Mustang CE-510

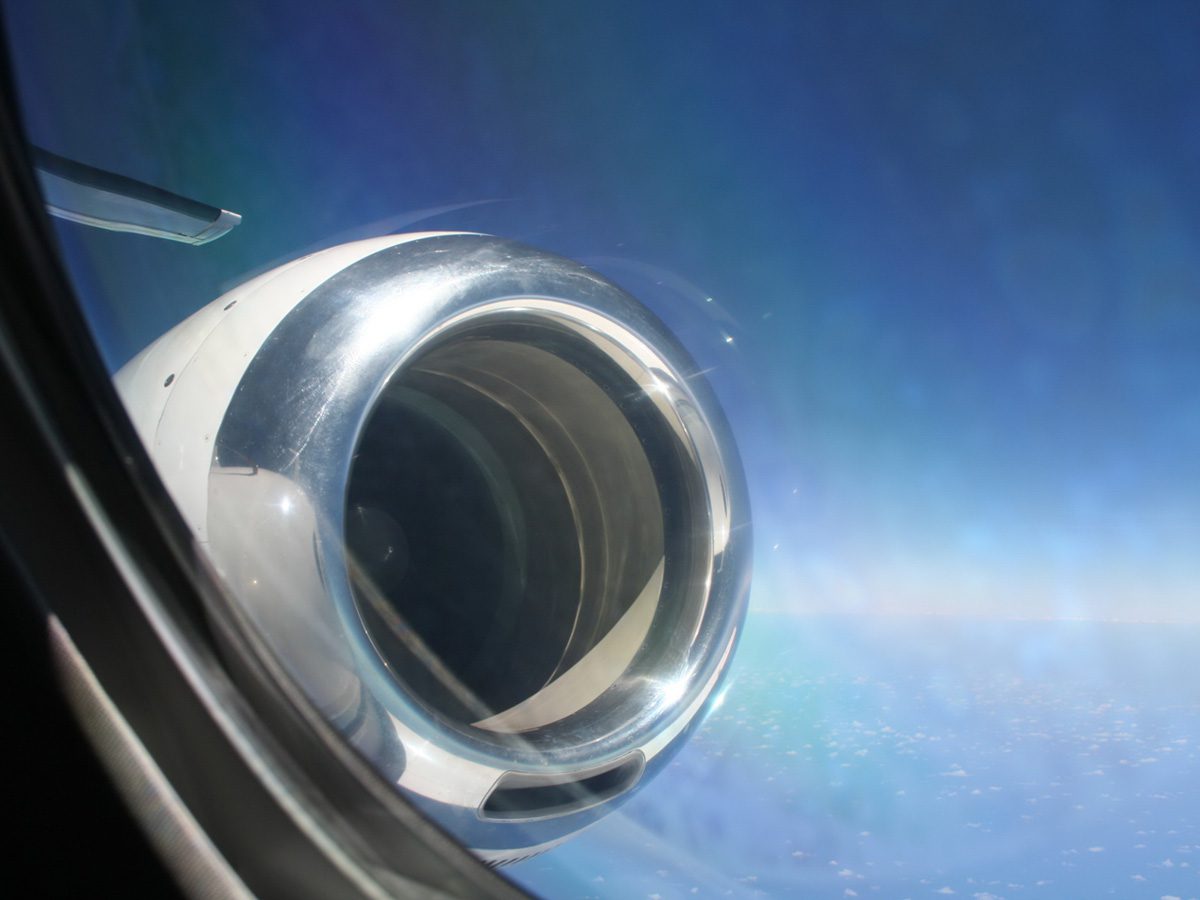

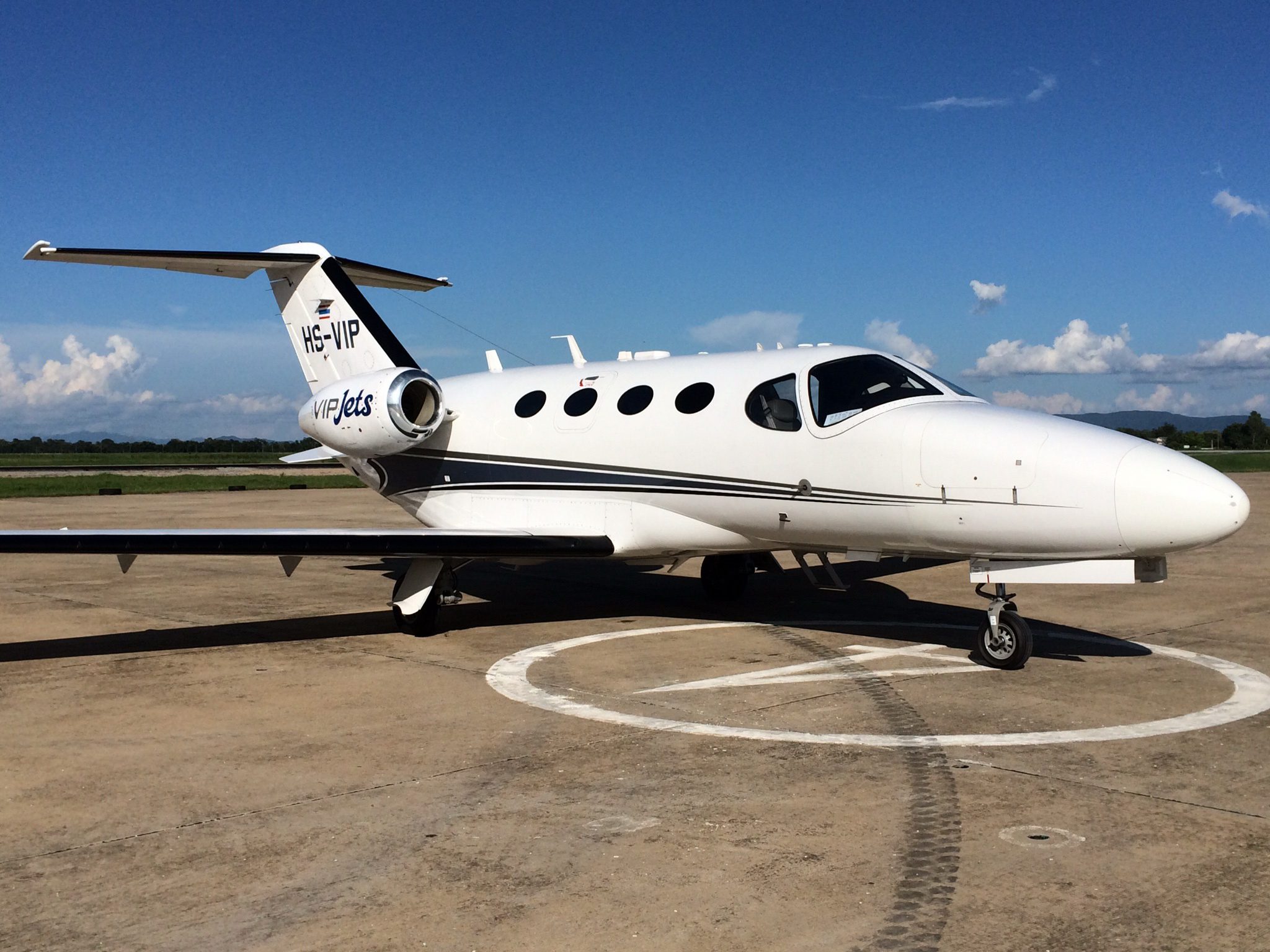

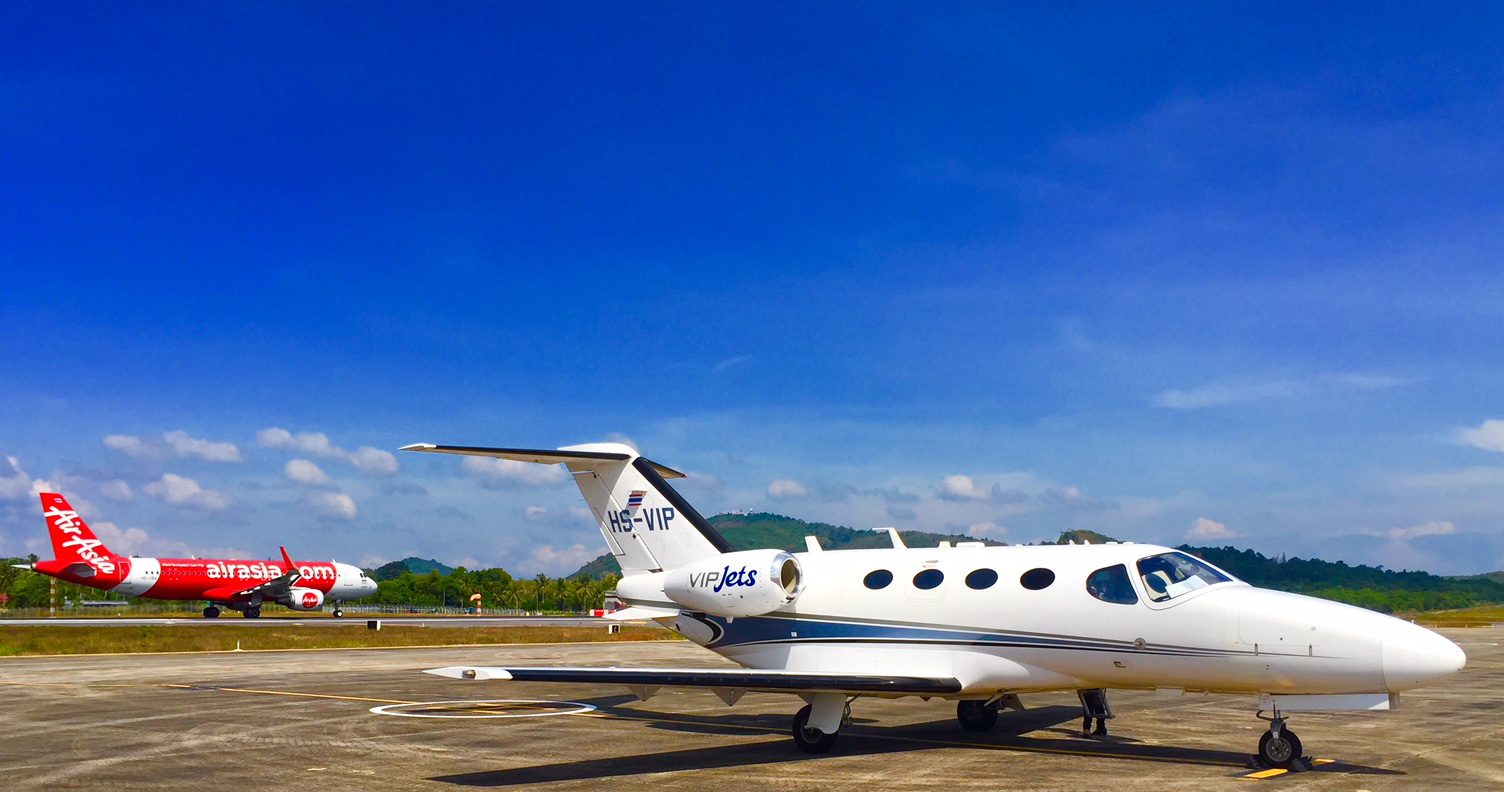

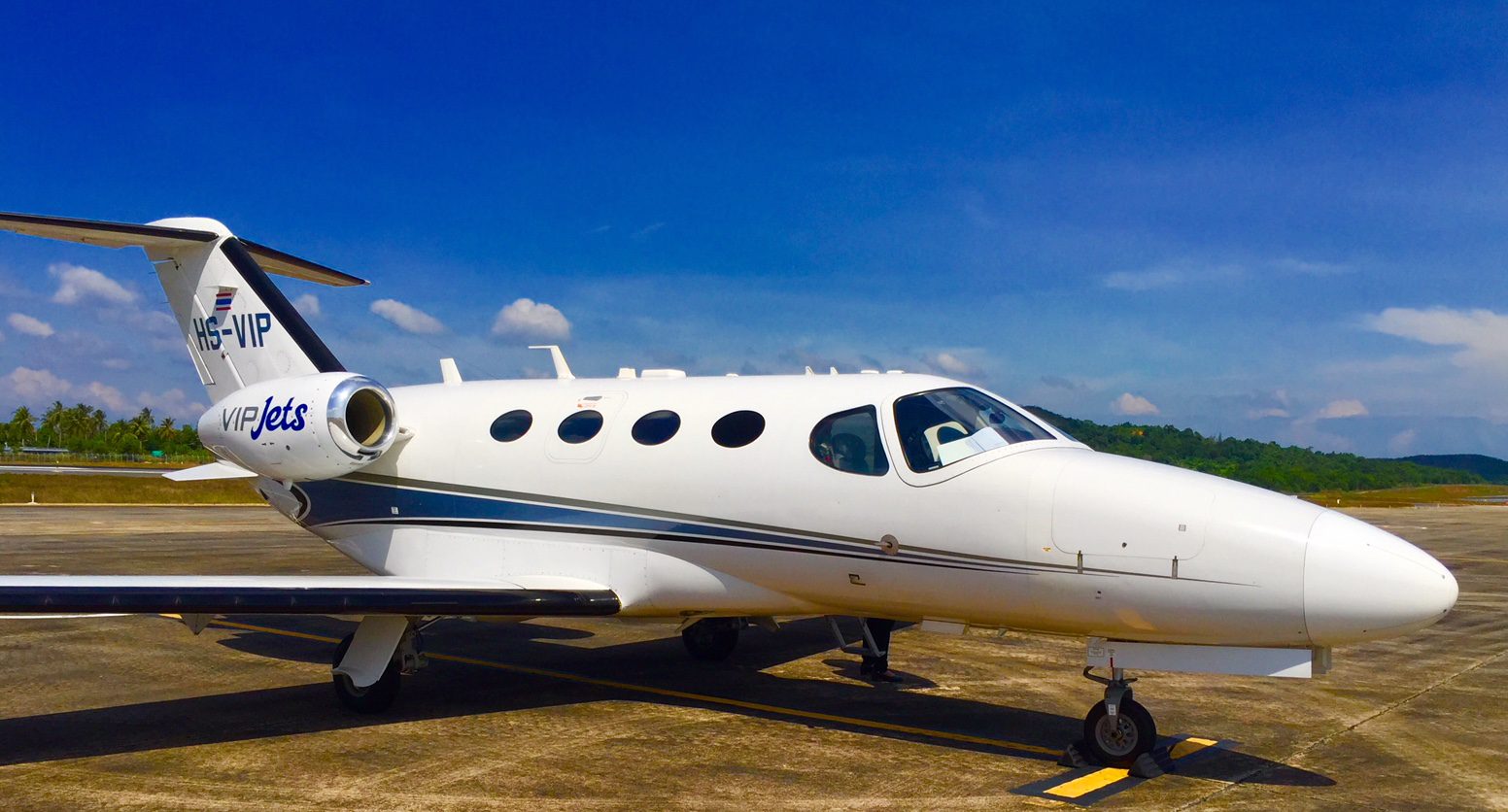

The Cessna Citation Mustang CE-510 is a low-wing twin jet with two Pratt & Whitney Canada PW615F turbofan engines.

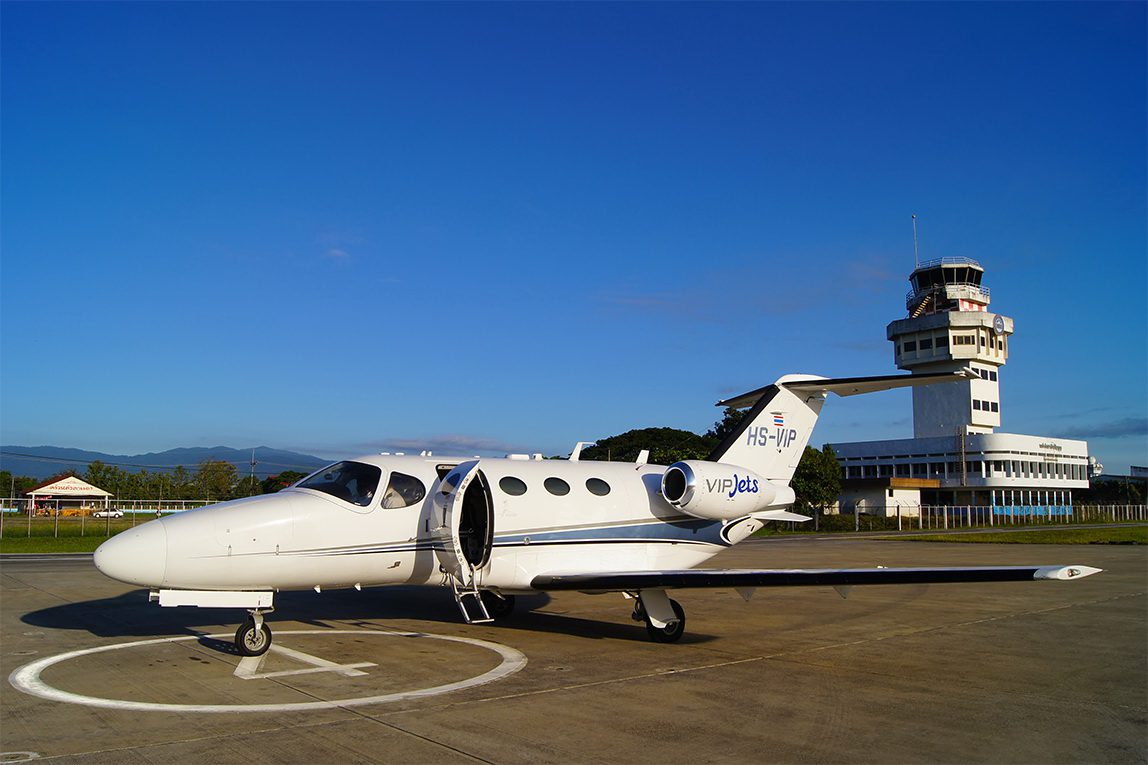

The main door is located in the forward left section of the aircraft, with an additional emergency exit on the center right section of the fuselage.

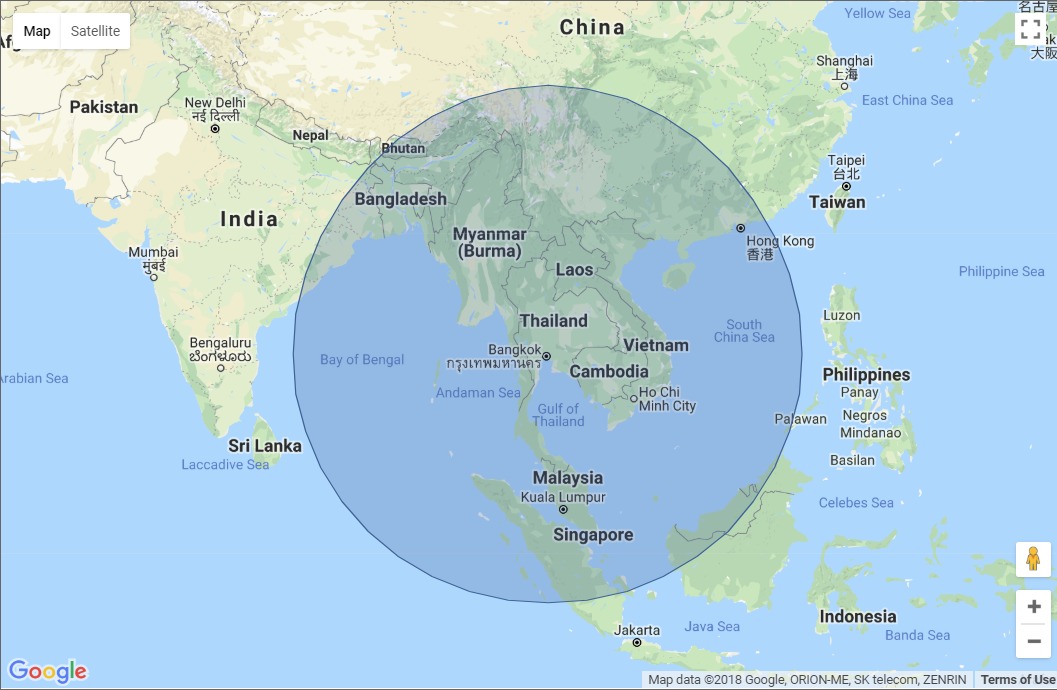

Range of Operations | Cessna Citation Mustang CE-510

Map which shows the range of operations of the Cessna Citation Mustang CE-510

Aircraft Specification

Capacity: 4 passengers
Length: 40’7″ (12.37 m)
Wingspan: 43’2″ (13.16 m)
Height: 13’5″ (4.09 m)
Empty weight: 6,750 lb (3’062 kg)
Loaded weight: 8,730 lb (3’960 kg)
Useful load: 3,180 lb (1’442 kg)
Max takeoff weight: 8,645 lb (3’930 kg)
Single Pilot Certified: Yes

Aircraft Performance

Maximum speed: Mach 0.63
Cruise speed:
340 ktas (630 km/h)
Range: 1,167 nmi (at max. takeoff weight) (2,161 km)
Takeoff Distance
: 3,110 ft (948 m)
Landing Distance: 2,380 ft (725 m)
Rate of Climb at Sea Level: 3,010 fpm (917 mpm)
Service ceiling: 41,000 ft (12’500 m)
Rate of climb: 3,010 fpm (917 mpm)
Thrust/weight: 0.169 (at max. takeoff weight)

Conditions: Take-off distances are over a 35 foot obstacle and landing distances are over a 50 foot obstacle.
Range Assumption: NBAA IFR Reserves (100 nm), HSC, Max Fuel, Max Takeoff Weight
Airport Performance: at Sea Level, ISA
